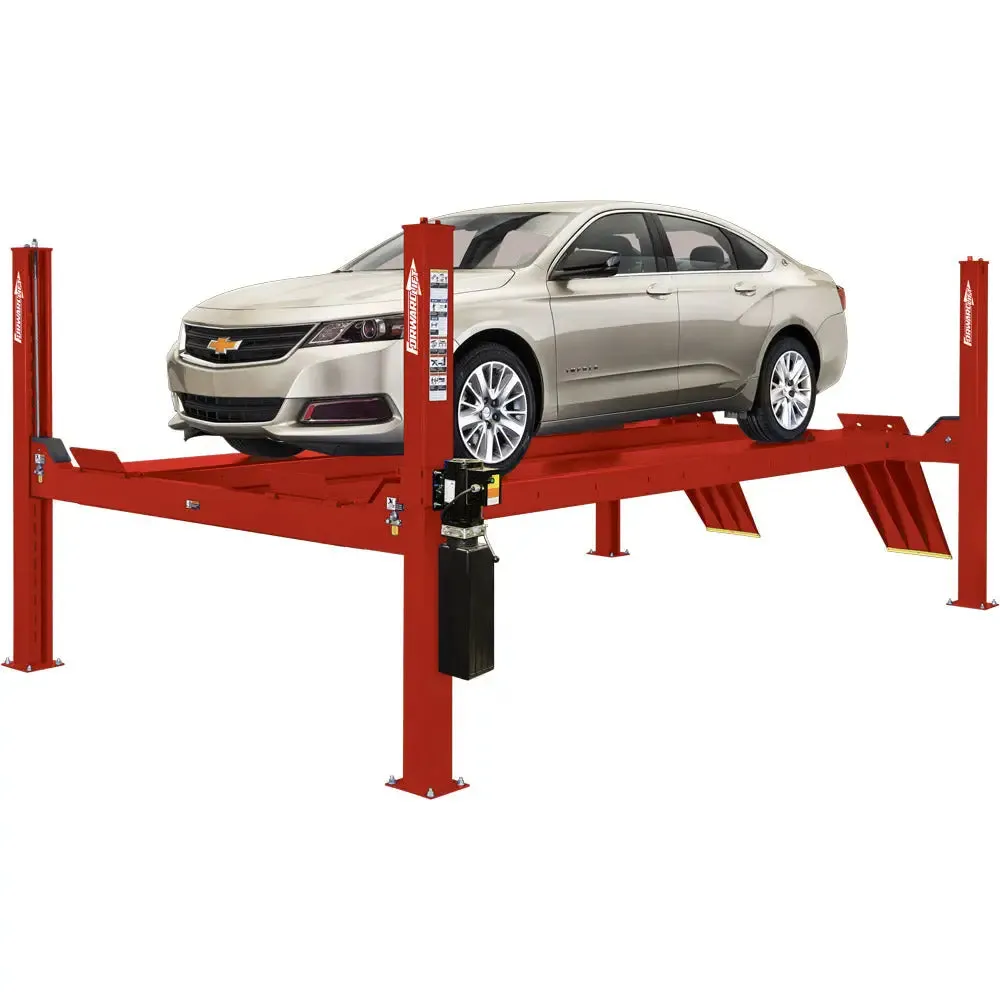

Forward Lift CR14 14K Four-Post Lift, ALI Cert.

Forward Lift CR14 14K Four-Post Lift, ALI Cert.

  • Standard
  • Extended
  • Blue
  • Red

$ 66.72

$ 51.32

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

The CR14 Lifts are designed to meet the service needs of today’s cars, vans, and trucks with 14,000 lbs. capacity!

Taller column design adds a 79″ rise height providing techs with better vehicle service access. This, coupled with the multi-position lock components, keeps your shop flexible. A new, improved heavy-duty, high-performance cable and sheaves system conveniently concealed under the runway, this heavy-duty system allows for greater capacity and durability. The cable and sheaves system is tucked under the lift but remains accessible for quick inspections yet doesn’t pose a snagging issue while working. A durable powder coat finish ensures your lift will continue to look good for years of service. Self-chocking approach ramps engage when the lift is raised – protective strips on ramps prevent floor gouging. All Forward products are proof load tested to 1½ times rated capacity! The combination of premium-quality products and service provides you with the best value – while not compromising safety, functionality, or durability.


Features:

  • Two model lengths are available
  • 78 - 3/4in rising height provides better vehicle service access
  • Heavy-duty, high-performance cable and sheaves system
  • Easy to use single point lift operation with one button air operated lock release
  • Multi-position lock components allow the lift to be level at any lock position
  • Self-chocking 41in approach ramps with protective strips
  • Durable powder coat finish

Specs:

Capacity: 14,000 lbs. (6350kg)
Rise: 78-3/4in (2000mm)
Overall width: 131-3/4in (3346mm)
Width Inside Columns: 116-1/4in (2953mm)
Overall height: 90-1/2in (2281mm)
Runway width: 20in (508mm)
Runway Height: 7in (178mm)
Rise Time: 72 seconds
Motor: 2HP

CR14N201Y (Standard)
Maximum Wheelbase: 182-1/2in (4635mm)
Overall length: 250in (6350mm)
Length between Columns: 195-1/4in (4959mm)
Width Between Runways: 43in (1092mm)
Minimum Bay Size: 15ft x 26ft (4572mm x 7925mm)

CR14N202Y (Extended Lenght)
Maximum Wheelbase: 215in (5461mm)
Overall length: 283in (7188mm)
Length between Columns: 228-1/4in (5798mm)
Width Between Runways: 46in (1168mm)
Minimum Bay Size: 15ft x 28ft (4572mm x 8534mm)

Application:

Independent repair shops
Car dealerships
Bodyshops
Home enthusiasts
Heavy-duty truck facilities
