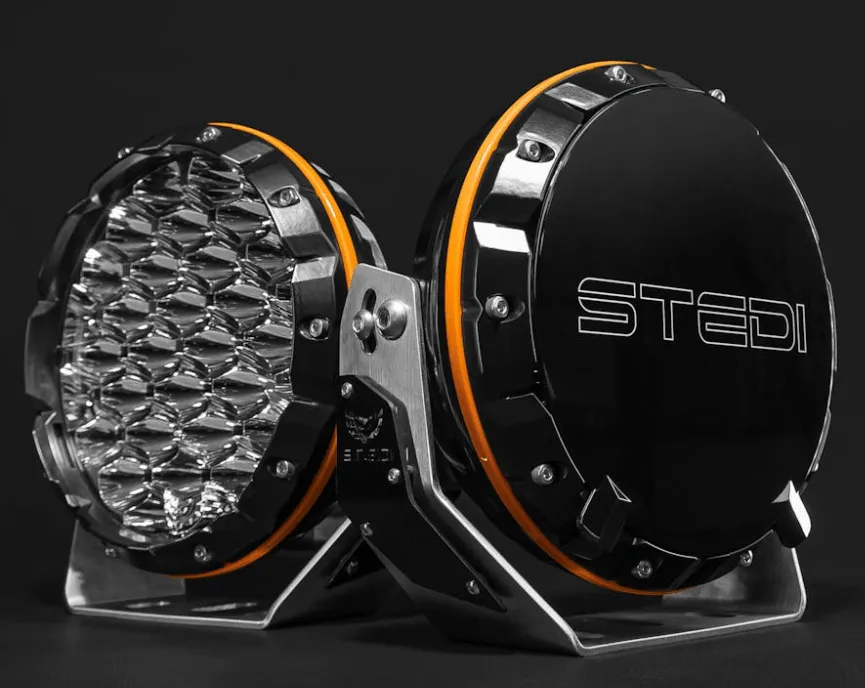

7" TYPE-X™ SPORT

7" TYPE-X™ SPORT

  • DefaultTitle

$ 53.27

$ 40.98

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

STEDI™ DESIGN LANGUAGE.

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armour with laser-cut STEDI™ branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on a Magnetic Grey Ranger.



LEGENDARY TYPE-X DNA.

It's been a few years since the inception of the original Type-X™. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X™ Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the near field and transition beautifully with the spot beam.



HIGH PERFORMANCE - ACCESSIBLE PRICE.

The 7" Type-X™ Sport; our most affordable driving light yet, with the inherented STEDI™ ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X™ Sport remains untouched.





THE NITTY GRITTY.



THE NERDY DETAILS

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.
  • Environmentally Sealed Deutsch DT-2 connector
  • EMI RFI Suppression circuitry - We guarantee it.
  • Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
  • 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)







TECH SPECS



LED32 x Osram Oslon SSL
RAW LUMENS16,640 (Pair)
TESTED LUMENS12,820 (Pair)
AMP DRAW6.4A @ 13.2v (each)
POWER DRAW85W (each)
CANDELA819,200cd
BEAM PATTERN4 x Spread 28 x Spot Beam
INGRESS PROTECTIONIP68 | Submersible up to 3m
COLOUR TEMP (CCT)5700K
VOLTAGE COMPATIBILITY12v & 24v
LUMEN MAINTENANCE50,000 LM-80
WEIGHT2.250kg (each)
OPERATING TEMP-40°C - 60°C
PHOTOMETRIC DATA
10 m8,129 L
50 m327 Lx
200 m20 Lx
300 m9 Lx
400 m5 Lx
895 m1Lx





WHAT'S INCLUDED



  • 2 x STEDI 7" TYPE-X Sport
  • 2 x STEDI Black Out Covers
  • 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
  • 3 Series Stainless Steel Nuts and Bolts
  • Rubber Shock Dampener
  • Wiring Instructions
